Mr.Steam MSITPLUS Operating Package for MAX Series

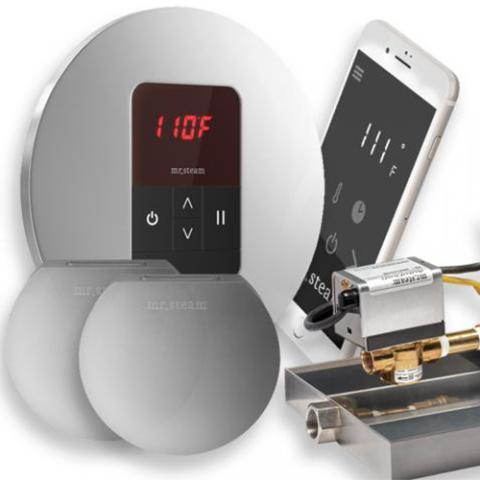

The Mr. Steam MS Butler Max package is designed for use with the MS Max 4-6E generators.

The MS Butler Max package comes complete with the iTempo plus control, the SteamLinx module, an AutoFlush draining system (larger than standard), two AromaSteam steam heads, and a drip pan (larger than standard).

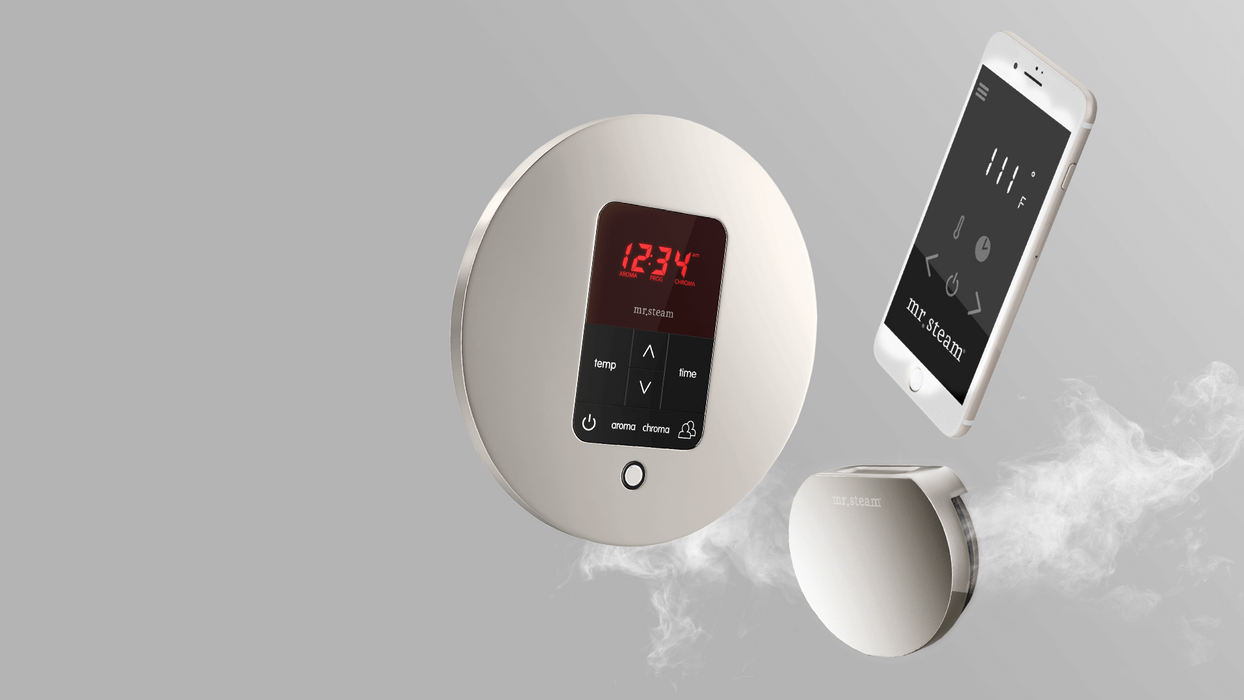

The included iTempo Plus control allows bathers to set programmable temperature, duration of the steam shower, on/off control, aroma, and lighting. The SteamLinx module offers the ability to control steam room functionality via mobile device from anywhere in the house.

The package includes two Designer Aroma Steam Heads which evenly disperse steam throughout the enclosure. Each steam head features an integrated aromatherapy reservoir which stores essential aroma oils.

The MS Butler Max control package comes with an AutoFlush drain system which automatically cleans the generator tank after each bathing session. The unit includes a drip pan to prevent any potential water leaks.

The MrSteam MS Butler Max is available in round (MSBUTLERXRD) or square (MSBUTLERXSQ) and in eleven finishes. The package is available with an optional steam head.

Features

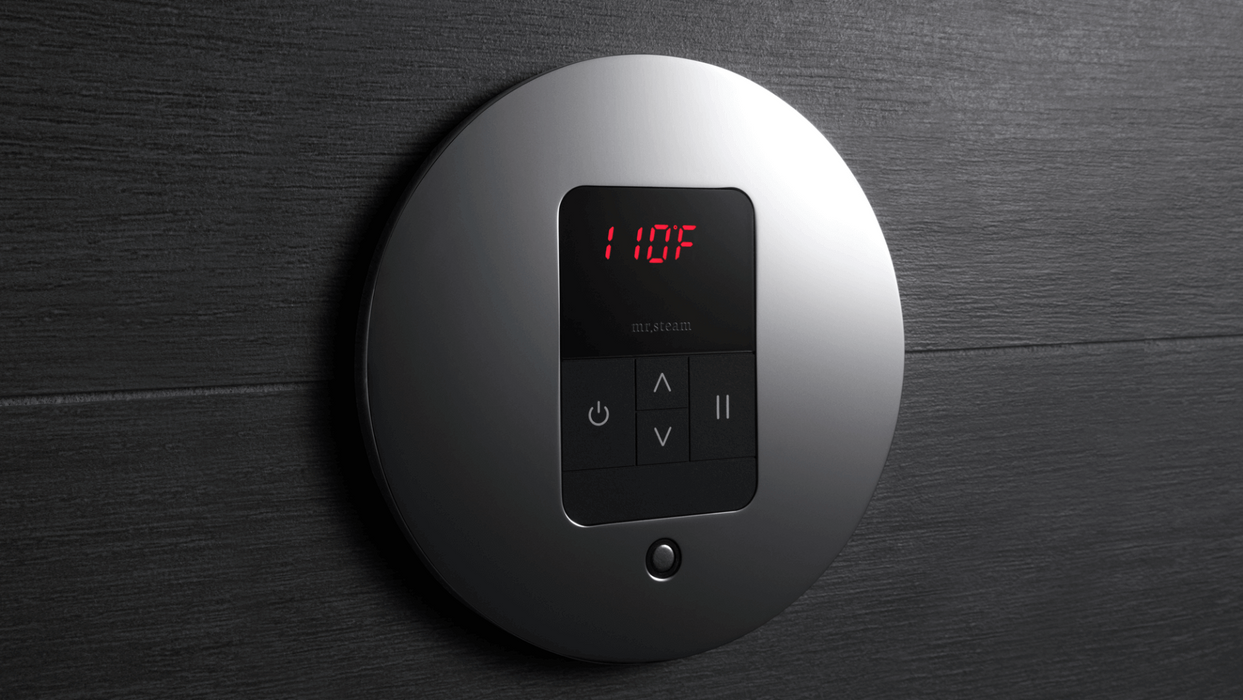

MS ITPLUS Operating Control

• Available in round or square
• Programmable time and temperature control
• Two preferred time and temperature memory settings
• Initiates Aromasteam and Chromasteam options
• Digital readout display
• Preset 60-minute time cycle
• On/Off and pause modes
• Soft touch keypad
• Inside or outside the steam/shower enclosure installation
• Low voltage operation
• Displays troubleshooting codes
• Available in Polished Chrome, Antique Brass, Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Satin Brass, Polished Gold, Polished Nickel and Satin Nickel designer finishes

SteamLinx

• Secondary Control using your Smart Phone and mobile app
• Operate Time, Temperature, On/Off remotely with your Smart Phone (Smart phone not included)
• Connects to your existing home wifi router

Steam Head

• Integral reservoir for a scented steam bath
• 3/4" NPT connection
• Available in Polished Chrome, Antique Brass, Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Satin Brass, Polished Gold, White Facia, Black Facia, Polished Nickel and Satin Nickel designer finishes

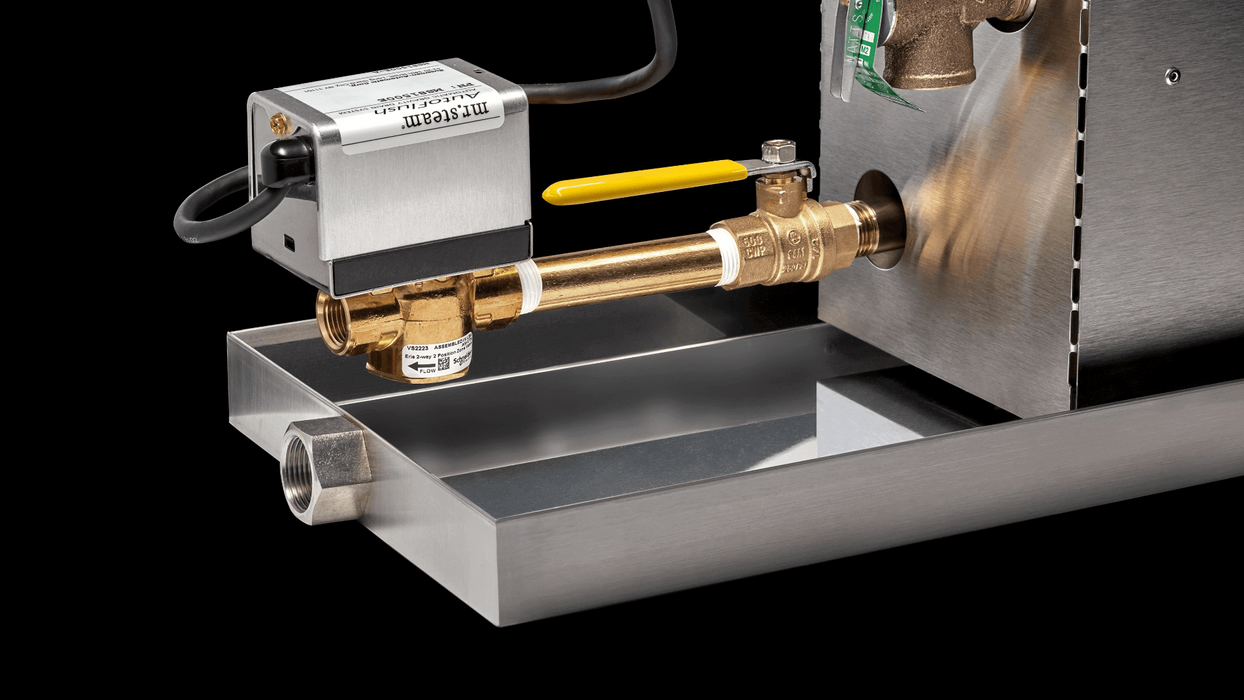

Automatic Drain

• 24 volts AC motorized actuation, 50/60 Hz, 6.5 Watts, Class 2
• Two position, normally open
• Brass valve body with 1" NPT connections
• Two lead integral electrical lead for terminal connection
• Gravity drain

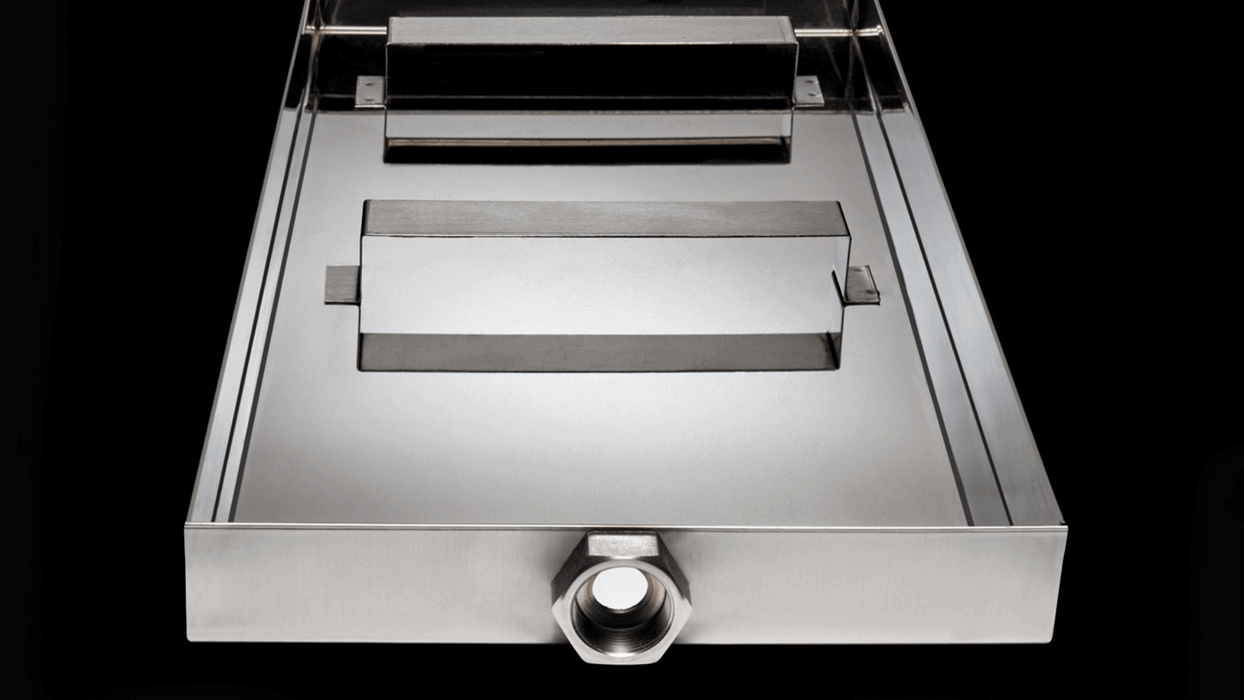

Drain Pan

• Galvanized sheet metal construction
• Integral 3/4", female PVC drain connection

Includes

• MS ITPLUS surface-mounted control, 3-7/8" diameter, 7/8" deep
• MiniDIN control cable, 30' long
• RTV silicone sealant, .5 oz tube
• Steam head, 1/2" NPT, 3-1/16" diameter, 1-13/16" deep
• Automatic drain valve
• Drain pan
• Steamlinx generator module, 3-3/8" x 2-3/4"W x 7/8"D
• Steamlinx router module, 3-3/8"H x 2-3/4"W x 7/8"D
• Ethernet cable, 6' long
• Power adapter
• Installation and operation manual
• Limited warranty
