Mr.Steam MSITPLUS Operating Package for MS/SUPER Series

The MS Butler package is compatible with the Mr. Steam MS Super 1E- Super 3E steam generators.

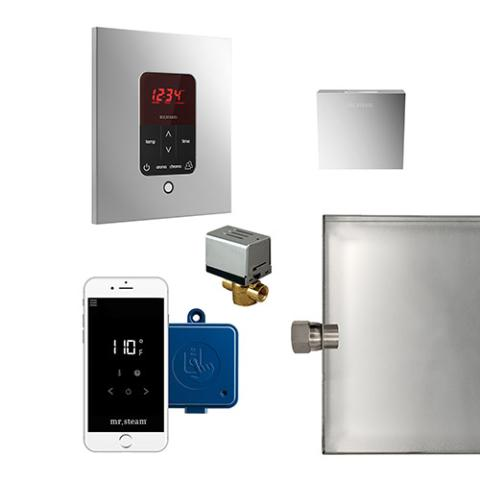

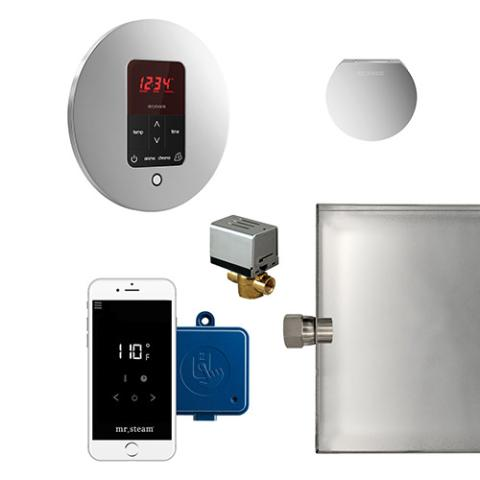

The Mr. Steam Butler Package includes the iTempo Plus control, an AromaSteam steam head, the SteamLinx module, an AutoFlush Automatic Drain System, and a drip pan.

With the iTempo Plus steam shower control, bathers can easily control important steam room functionality such as time, temperature, on/off, AromaSteam, and ChromaSteam lighting. The iTempo Plus features programmable time and temperature settings and an easy-to-read digital display.

The package includes the SteamLinx module and application which allows users to wirelessly operate steam room features from their smart phone or mobile device.

The MS Butler 1 features an AromaSteam steam which evenly disperses steam throughout the environment. The steam head has a built-in integral reservoir so that you may add essential oils to the steam shower.

The included Auto Flush system automatically purges the generator tank after each session to protect the longevity of the unit. The drain pan installs below the generator to prevent any potential water leakage.

The MrSteam MS Butler 1 package is available in round (MSBUTLER1RD) or square (MSBUTLER1SQ) and in ten designer finishes. The package is available with an optional linear steam head.

Features

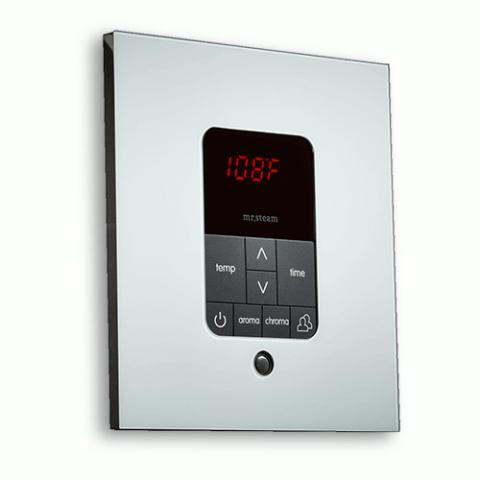

MS ITPLUS Operating Control

• Available in round or square
• Programmable time and temperature control
• Two preferred time and temperature memory settings
• Initiates Aromasteam and Chromasteam options
• Digital readout display
• Preset 60-minute time cycle
• On/Off and pause modes
• Soft touch keypad
• Inside or outside the steam/shower enclosure installation
• Low voltage operation
• Displays troubleshooting codes
• Available in Polished Chrome, Antique Brass, Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Satin Brass, Polished Gold, White Facia, Black Facia, Polished Nickel and Satin Nickel designer finishes

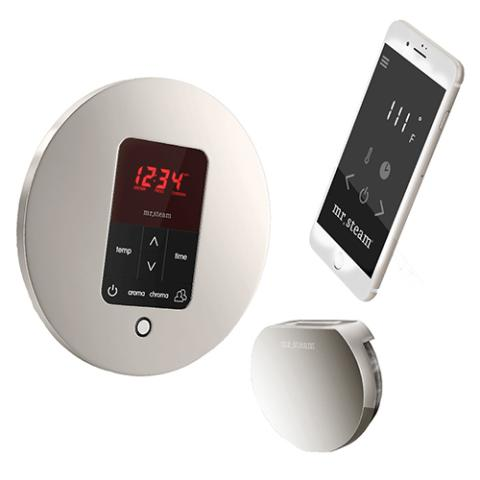

SteamLinx

• Secondary Control using Steamlinx with your Smart Phone and mobile app
• Operate Time, Temperature, On/Off remotely with your Smart Phone
• Connects to your existing home WiFi router

MS 103937 Steam Head

• Integral reservoir for a scented steam bath
• 3/4” NPT connection
• Available in Polished Chrome, Antique Brass, Brushed Bronze, Brushed Nickel, Matte Black, Oil Rubbed Bronze, Polished Brass, Satin Brass, Polished Gold, Polished Nickel and Satin Nickel designer finishes

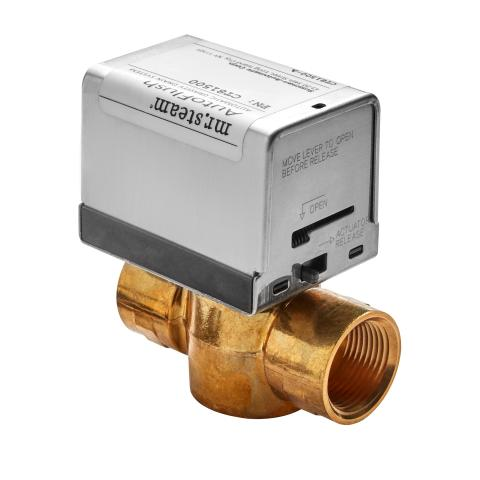

MS81500E Automatic Drain

• 24 volts AC motorized actuation, 50/60 Hz, 6.5 Watts, Class 2
• Two position, normally open
• Brass valve body with 1/2” NPT connections
• Two lead integral electrical lead for terminal connection
• Gravity drain

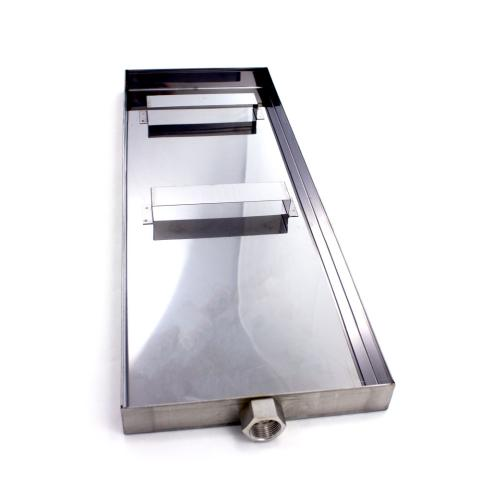

MS 103867E Drain Pan

• Galvanized sheet metal construction
• Integral 3/4”, female PVC drain connection

Includes

• iTempo/Plus control
• Matching AromaSteam steam head
• AutoFlush automatic drain
• Drip pan
• Steamlinx generator module, 3-3/8"H x 2-3/4"W x 7/8"D
• Steamlinx router module, 3-3/8"H x 2-3/4"W x 7/8"D
• Ethernet cable, 6' long
• Power adapter
• Installation and operation manual
• Limited warranty

Specifications
