Harvia Xenio Sauna WiFi Remote Control Panel
The modern and stylish Harvia Xenio WiFi is a sauna control panel that you can connect to the Harvia Xenio control unit. The control panel can be connected to a wireless LAN, after which you can enjoy wireless functions with the MyHarvia mobile application. Harvia Xenio WiFi enables a variety of installation options and can also be easily installed afterward to replace the old control panel. We recommend that you place the control panel near the sauna door as a surface installation or embedded into the wall. The control panel enables easy and clear sauna control. You can start and adjust the sauna temperature with the control panel buttons. The illuminated buttons on the display make it easy to use even in low lighting conditions. Follow your sauna’s status with the MyHarvia mobile application or on the control panel’s digital display. The door sensor of the sauna’s remote starting status can be activated straight from the control panel.
This can be used as a replacement panel to provide WIFI on an already existing (compatible) control system or for new installations. This WIFI panel does not operate without a (compatible) Xenio Control System.
Features
- Replacement panel offering WIFI upgrade for Xenio control systems (Xenio control system sold separately)
- Easy installation
- Access to MyHarvia application
- Wall installation
- Compatible devices (Please see image Remote Kit Compatibility)
- Dimensions: 3.34"W (84mm) x 0.9"D (22mm) x 4.3"H (109mm)

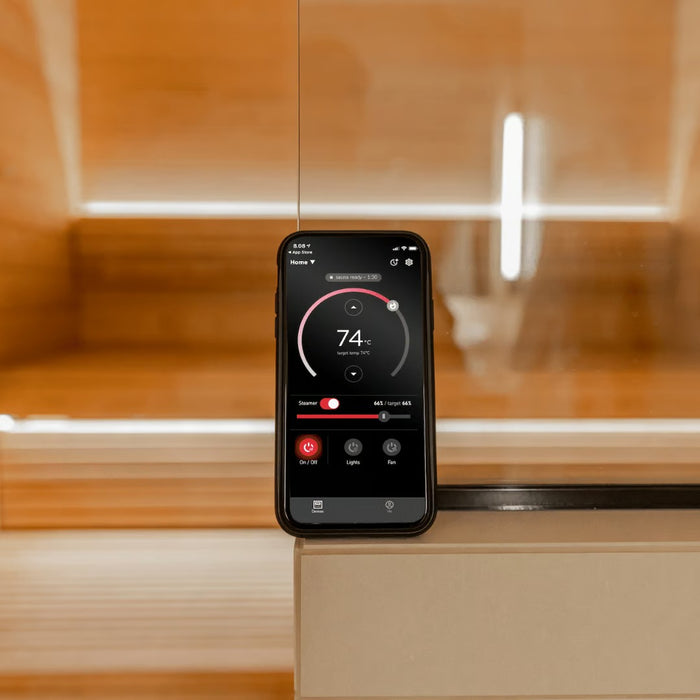

MyHarvia Application
- Control lighting
- Control of fan
- On-time feature
- Timed start feature
- Week Clock
- Safety device option
- Time zone selection
- Daylight saving selection
- Temperature adjustment
- Humidity adjustment
- Application not available in all countries
- Can be connected to unlimited amount of devices
- Access to control panel updates for the latest features and improved functions
Includes
- Xenio WIFI Control Remote Kit (WIFI panel only)
- Installation and Operation Material
Specifications
Model
Power Consumption
Wifi Frequency Band
Supply
Connection
Electrical Frequency
Weight
Width
Depth
Height
MyHarvia Application
Temperature adjustment range
Humidity adjustment range
On time
Control of
lighting
Control of
fan
Timed start adjustment range
Weekly clock
Safety device option
Time zone selction
Daylight savings selection
Xenio WiFi Remote Control
Peak 2W, average 600mW
2.4 GHz
12-24 VDC
4-pin: +12VDC, GND, RS485 A+B
50/60Hz
0.3lbs
3.34" (84mm)
0.9" (22mm)
4.3" (109mm)
104-194F
20-80rH
1 hour
On/Off button- Automation:
ON when the heater turns on
On/Off button- Automation:
ON when the heater turns off
0-12hr/For one heating/Based on calendar
Max 8 programs
Safety switch (Optional)
Yes
Yes
